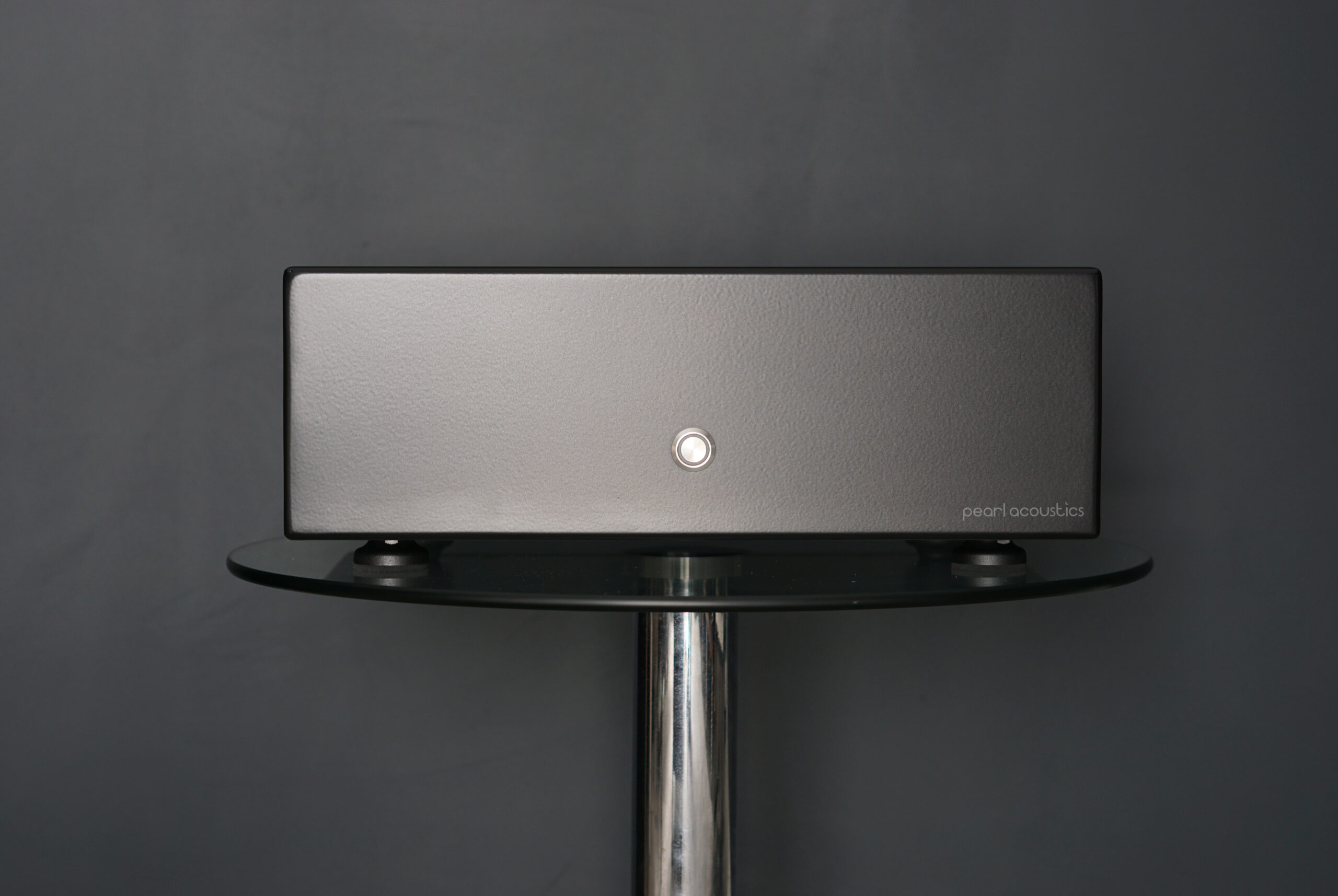

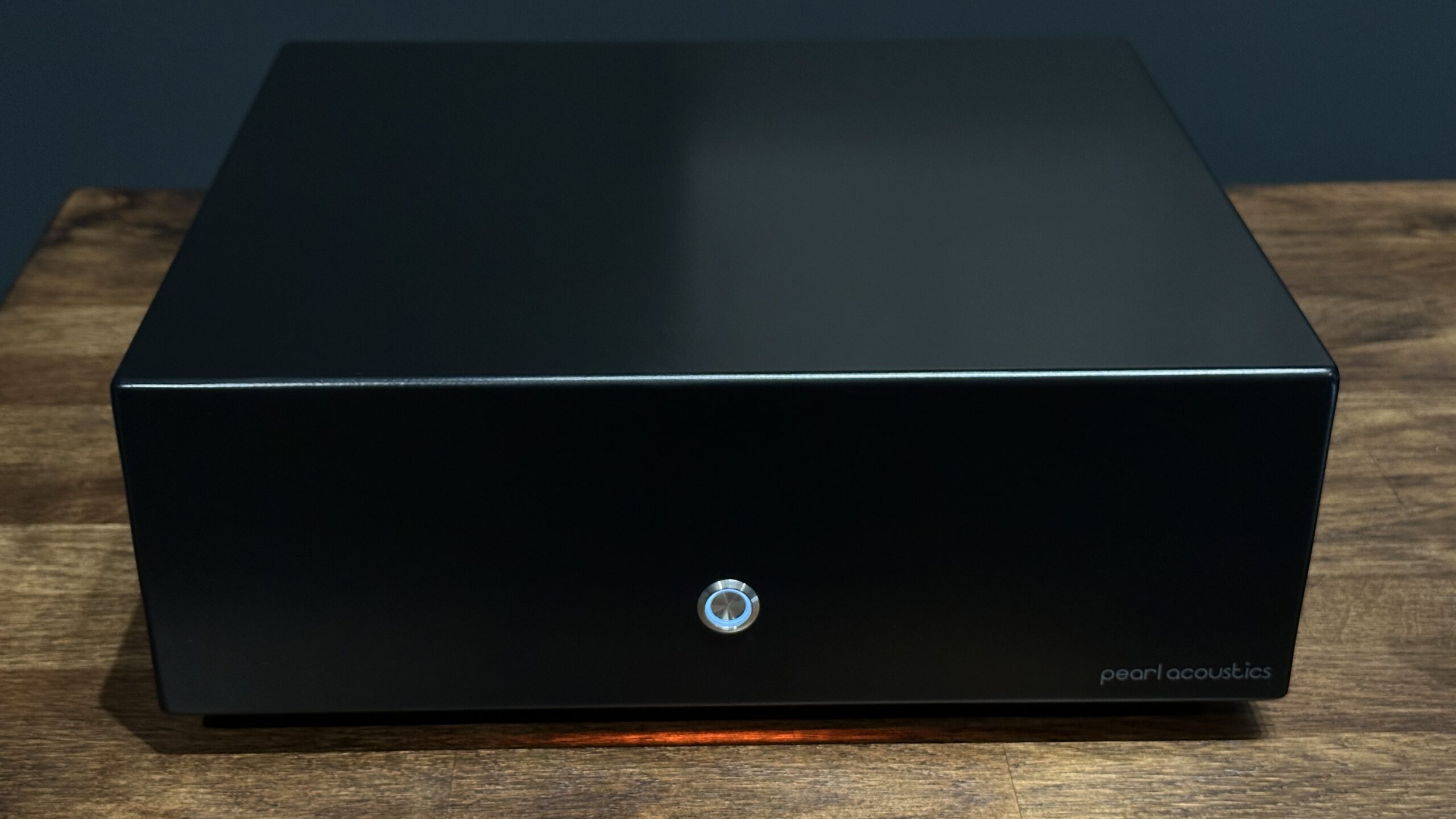

7040 Power Amplifier

Our 7040 power amplifier has been designed to drive every kind of loudspeaker; from our single driver, Model One loudspeakers to the most demanding electrostatic, planar magnetic and multi-way studio monitors, regardless of price or size.

With the 7040, our ambition was to prove that Bruno Putsey’s ‘perfect’ PURIFI, 7040 class ‘D’ power modules could sound just as enticing, three dimensional and holographic as the best vacuum tube amplifiers, while delivering second to non dynamics, bass control and lifelike midrange. And all in a sleek, understated chassis that ensured silent heat dissipation, with the utmost minimum of interference from internal and resonances of any kind.

FEATURES

• Fully dual mono design
• Cool running and efficient
• Smooth, soft start power up
• 2 (front switchable) inputs – XLR and RCA
• Fully differential (input to output, balanced) – in XLR mode
• 2 (front switchable modes) of operation – Dynamic and Relaxed
• 4 custom, Pearl Acoustics/Sparkos op-amps, in Dynamic mode
• Fully bespoke Pearl Acoustics differential input stage, in Relaxed mode
• High quality, semi-matte black finish (custom colours available upon request)
• Hand made in Ealing, England, U.K.
• 5 year parts and labour warranty

TECHNICAL SPECIFICATION

Power output	250W (8Ω), 500W (4Ω), 950W (2Ω), utilising 2 PURIFI 7040 modules
Frequency response	20Hz to 20kHz
Gain	25dB
Input impedance	22KΩ
Power consumption	35-50W (typical use), 1800W (max)
Dimensions	405mm x 150mm x 375mm (whd) – unpacked
Weight	12kg (unpacked)
Voltage	115V, 230V

Our 7040 power amplifier was born from a challenge that our loudspeaker designer, Harley Lovegrove laid down in one of his YouTube videos in February 2023. His request was for power amplifier designers worldwide to come up with a front end design worthy of Bruno Putseys’ ‘perfect’ 7040, PURIFI amplifier modules.  The main issue was that although the PURIFI module had been very well received, most implementations tended to leave the listener a little emotionally ‘cold’, after the initial ‘wow’.  From a technical point of view, the PURIFI modules, although powerful, had insufficient gain to be used on their own for most pre-amplifier couplings.

Two and a half years later we are proud to announce that it was our very own Ajay Verma who finally delivered on Harley’s brief!

“Everybody wants the perfect power amplifier: It should be powerful enough to drive any domestic HiFi loudspeaker to their max. It should not care about a loudspeakers’ impedance curves and other design foibles. It should be dynamic and accurate (when a cymbal crashes, or a bass drum thumps, it must react instantly and with the same energy). It must be truthful and pure (human vocals must sound exactly as their microphones captured them). It must present a wide soundstage, with each instrument separated and articulated, without colouration. It must be 3 dimensional, holographic and engaging. It should pull you in and entice you to listen for hours and hours, without the faintest hint of fatigue. AND: It should be very efficient. It should never run hot or pump wasteful energy into the room. It should switch on and off silently (no thumps or pops). It should be silent in operation (no hum, nor hiss or buzzes). It should be designed, to last forever”.

Harley Lovegrove, February 2023.

“With our 7040 amplifier, I believe we have got there. So much so, that we can even boast a couple of extra features that Harley’s brief had not thought of, namely; dual inputs, so that it can be driven by more than one preamplifier, a switchable ‘Relaxed’ mode that calms it down, offering a smooth evening listening experience, and a ‘Dynamic’ mode that brings it back to full on performance.”

Ajay Verma, Pearl Acoustics 7040 designer
